12V-24V DC 2.4G RF Wireless RGB LED Controller for RGB LED Strips with Touch Color Ring Remote

12V-24V DC 2.4G RF Wireless RGB LED Controller for RGB LED Strips with Touch Color Ring Remote

* 12V-24V DC RF Wireless RGB LED Controller
* Used for 12V/24V DC RGB color LED lights

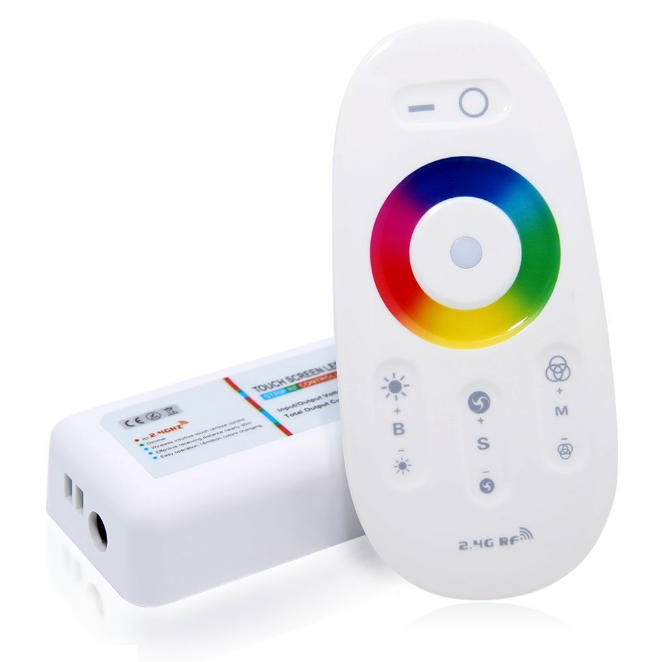

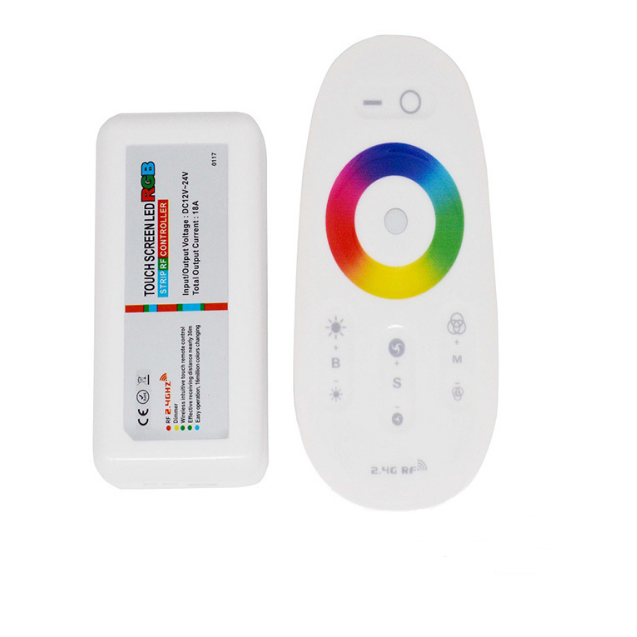

* 1 set include 1 remote and 1 controller

Brief Introduction

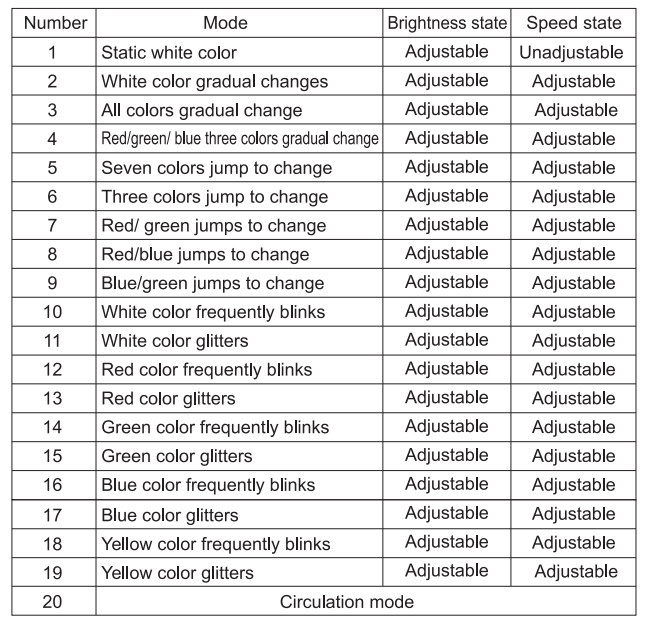

This RGB controller adopt the most advanced PWM control technology, contorlling all RGB LED products with four lines and three ciricuits (common anode), having 640 thousand colors and 20 automatical changing modes to choose.
Also it has the memory function, so it can save the previous setting before power off. It is widely used in LED RGB strip light, LED modules and so on.

With the 2.4G high frequency wireless remote controller, it is low power consumption, long distance transmission, and strong anti-interference ability, hight speed telecommunications, etc.

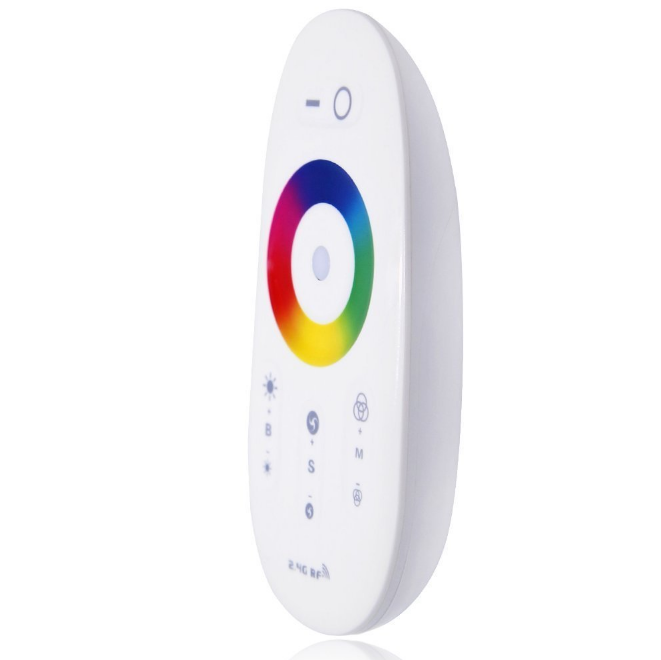

The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.

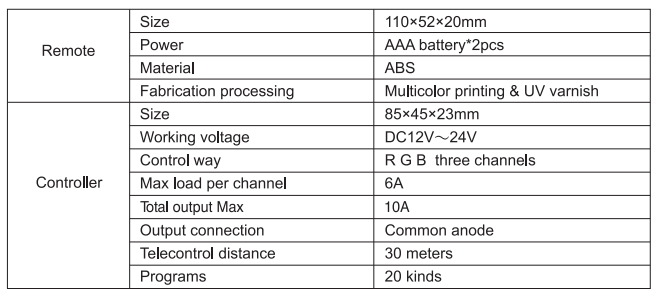

Product Parameter:

Product Name: 2.4GHz Touch RGB LED Strip Controller
Model No.: FUT025
Voltage: DC12V-24V
Output: Max. 6A/Channel, Total output Max.10A
Control Distance: 30m
Controller Size: 85*45*22.5mm
Remote Size: 110*53*20.5mm

Programming (code clearing and code matching)

Code matching:
For a new kit (remote & controller), the remote can work only when it is programmed to the controller.
Please follow the below instructions.
* Make sure it is correctly connected between power supply, LED controller and LED lights.
*Switch off the power, then switch one again. And press the key "Speed +" one time within 3 seconds till you see the indicating light is on.
*The indicating light blinks twice slowly when the code matching is sucessfully done.

Code clearing:
The code can be cleared if you dis-connect the remote and controller.
Please follow below steps.
* Make sure it is correctly connected between power supply, LED controller and LED lights.
* Switch off the powerm then switch one again. Then long press the "Speed +" key one time within 3 seconds till you see the indicating light is on.
* The indicating light blinks nine times swiftly once the clearing is sucessfully done.

Notes
* This product is sold in a kit include one remote and one controller reguarlly.
* The user can re-program freely as needed. One remote can control countless controllers, but one controller can only be controlled by four remotes the max.

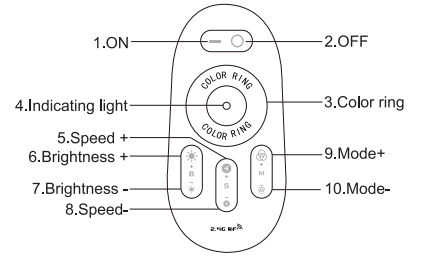

Photo Illustration
