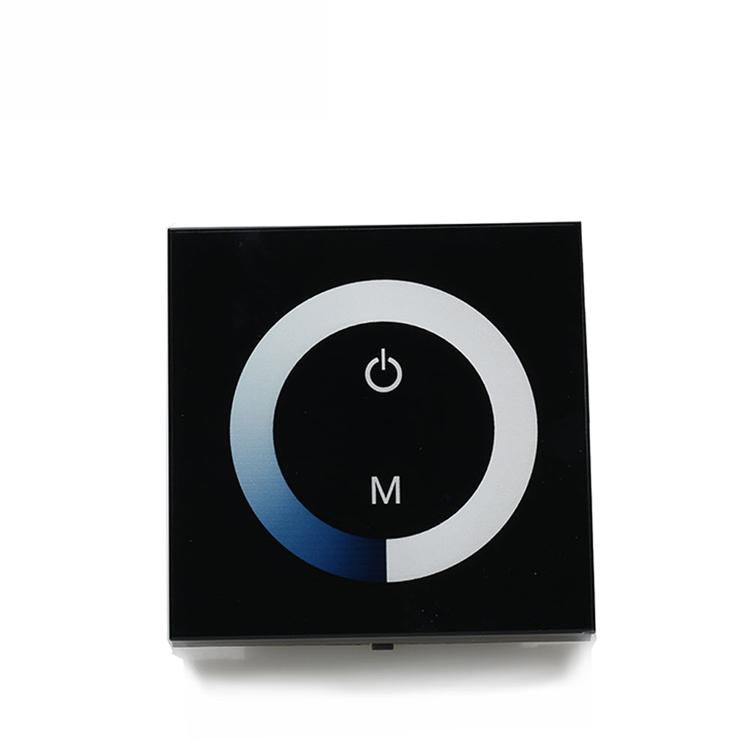

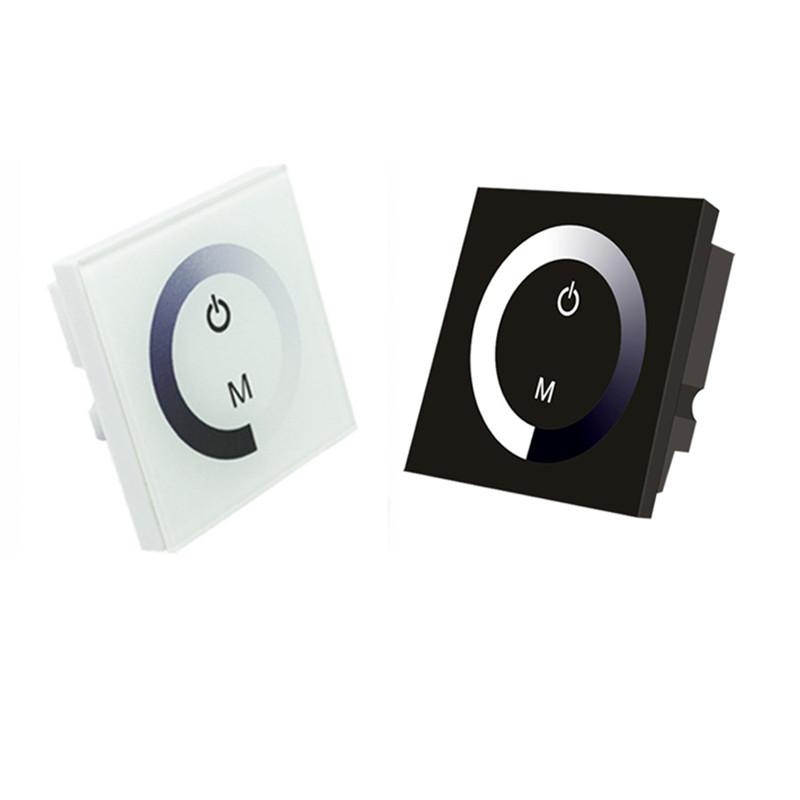

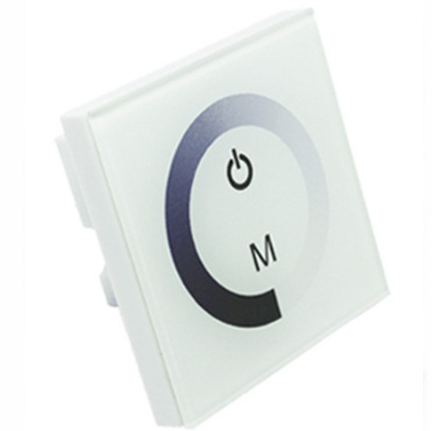

12V-24V DC TM06 Wall Panel Touchable Color Ring LED Dimmer Controller for Single Color LED Strips

12V-24V DC TM06 Wall Panel Touchable Color Ring LED Dimmer Controller for Single Color LED Strips

Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12~24V
● output: 1 channel
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H36 mm
● packing size: L115 Χ W110 Χ H56 mm
● net weight: 126g
● gross weight: 185g
● static power consumption: <1W
● output current: <8A
● output power: 12V<96W, 24V<192W

Function

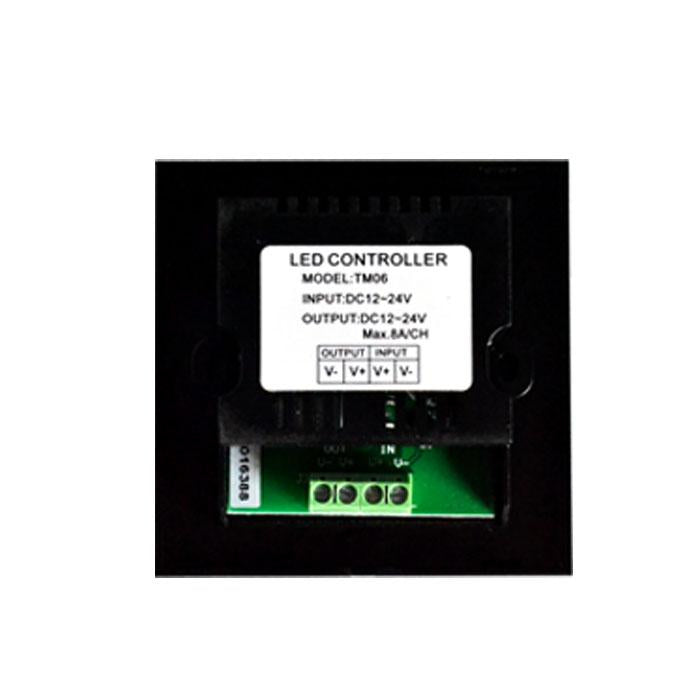

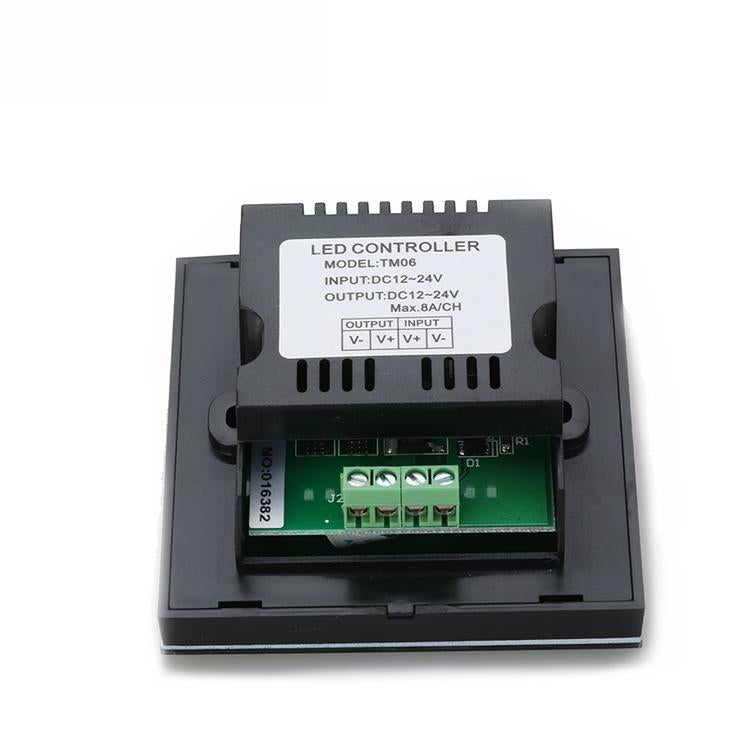

Wiring Reference

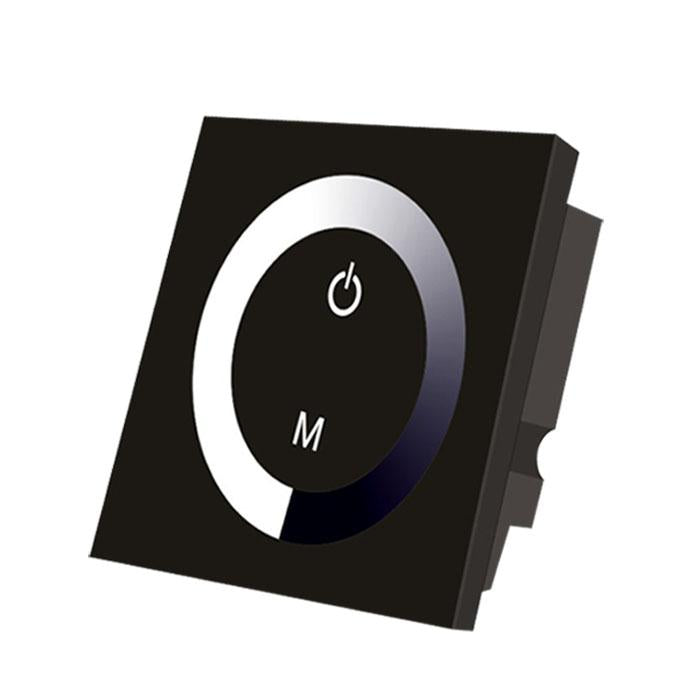

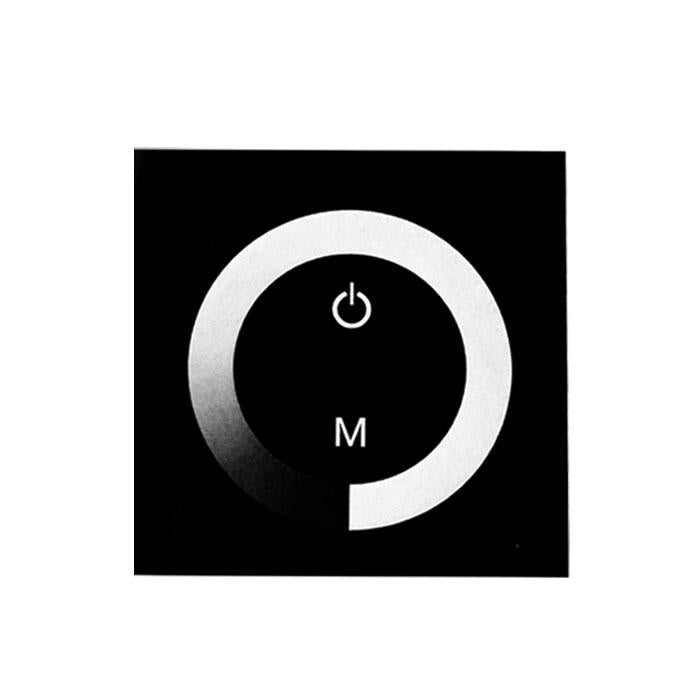

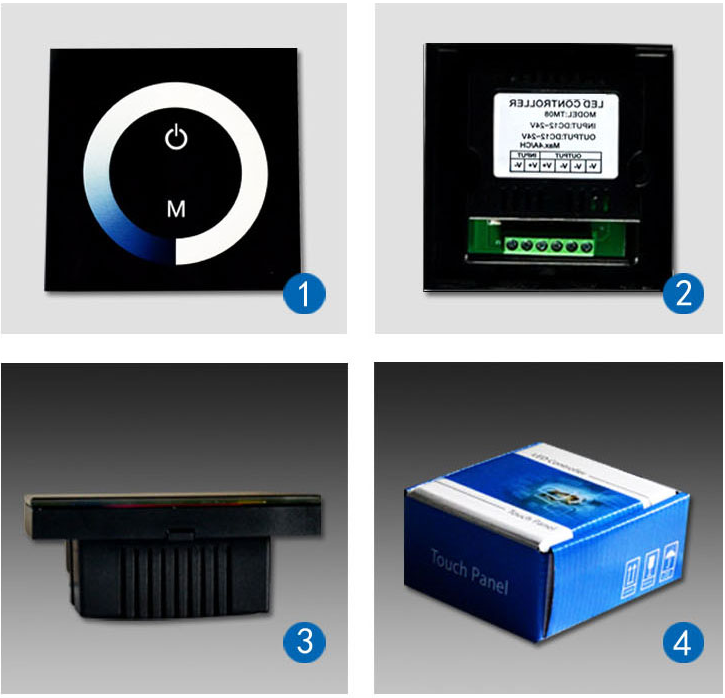

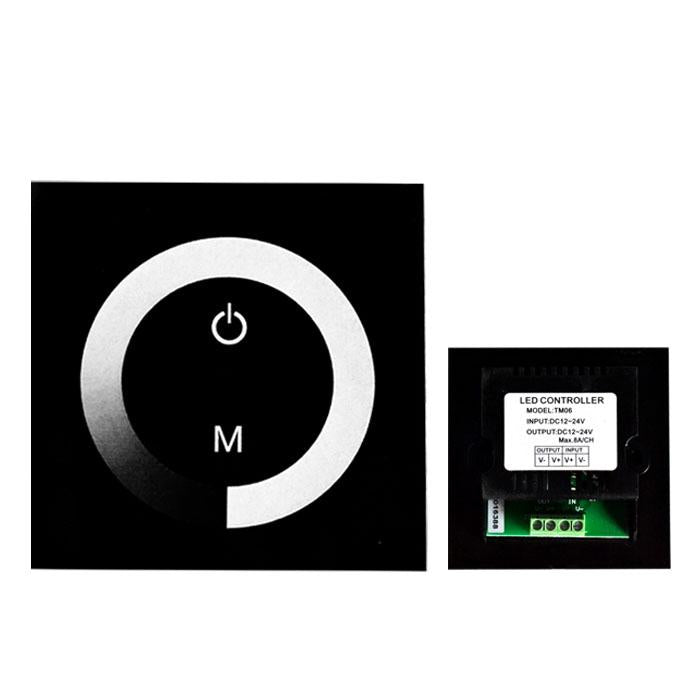

Photo Illustration

Installation Guide

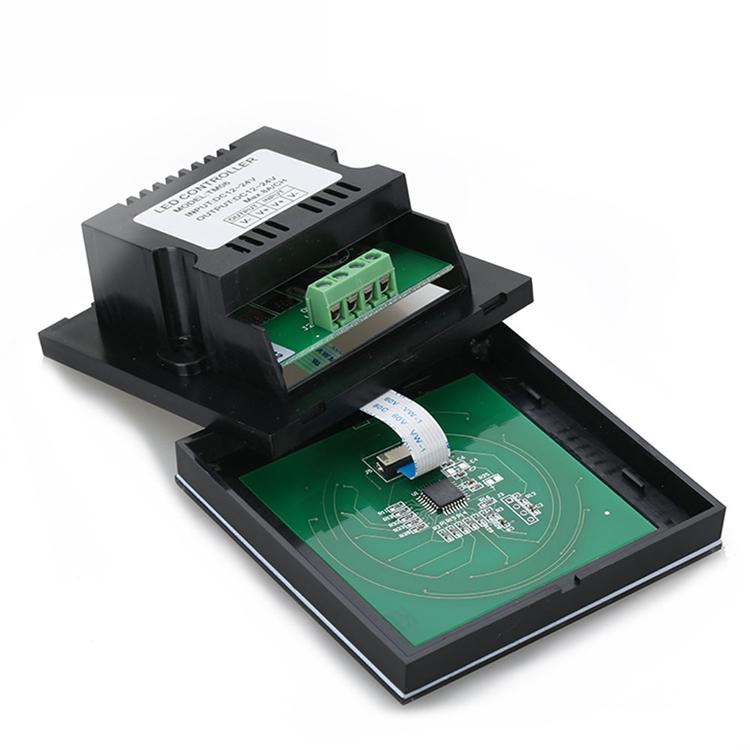

1. Use tool to take apart the front panel and back base of the wall panel LED controller

2. Get the wires be conneted well between the Back Base and the strips & power source

3. Recessed the Back Base into wall and fixed it by screws.

4. Finally press the Front Panel back into the Base Base.
