12VDC Waterproof IP65 SMD3528-36-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 36LEDs 3.6W per piece
12VDC Waterproof IP65 SMD3528-36-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 36LEDs 3.6W per piece
LEDLIGHTSWORLD infrared 850nm/940nm LED Linear Rigid Light Strip.This Waterpoof IP65 LED Aluminum Shell Rigid Light Strip is sold by 50cm long per piece. It's 12VDC operation. Dimmable with compatible LED dimmers. Customized lengths accept.
| Technical Specification |
| Wattage | 7.2W/pc | Voltage | 12V DC |
| Beam Angle | 120° | Dimming | Yes |
| LED Type | SMD5050 | Strip Section | 3LED per 1.93inch |
| WxH | 12x7(mm) (not include end cap size) | LED QTY.: | 30LED/pc |
| Length Available | 500mm (customized length available) | Available Color | 850nm and 940nm |
| Protection Grade | Waterproof IP65 | Finish Color | Silver |
| Other Features |
| Item | 12VDC Waterproof IP65 SMD5050-30-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 30LEDs 7.2W per piece |
| Weight | 150g/pc |
| Mounting | The light bar end cap with hole on it, can use screw that provided to fix on to object surface. |

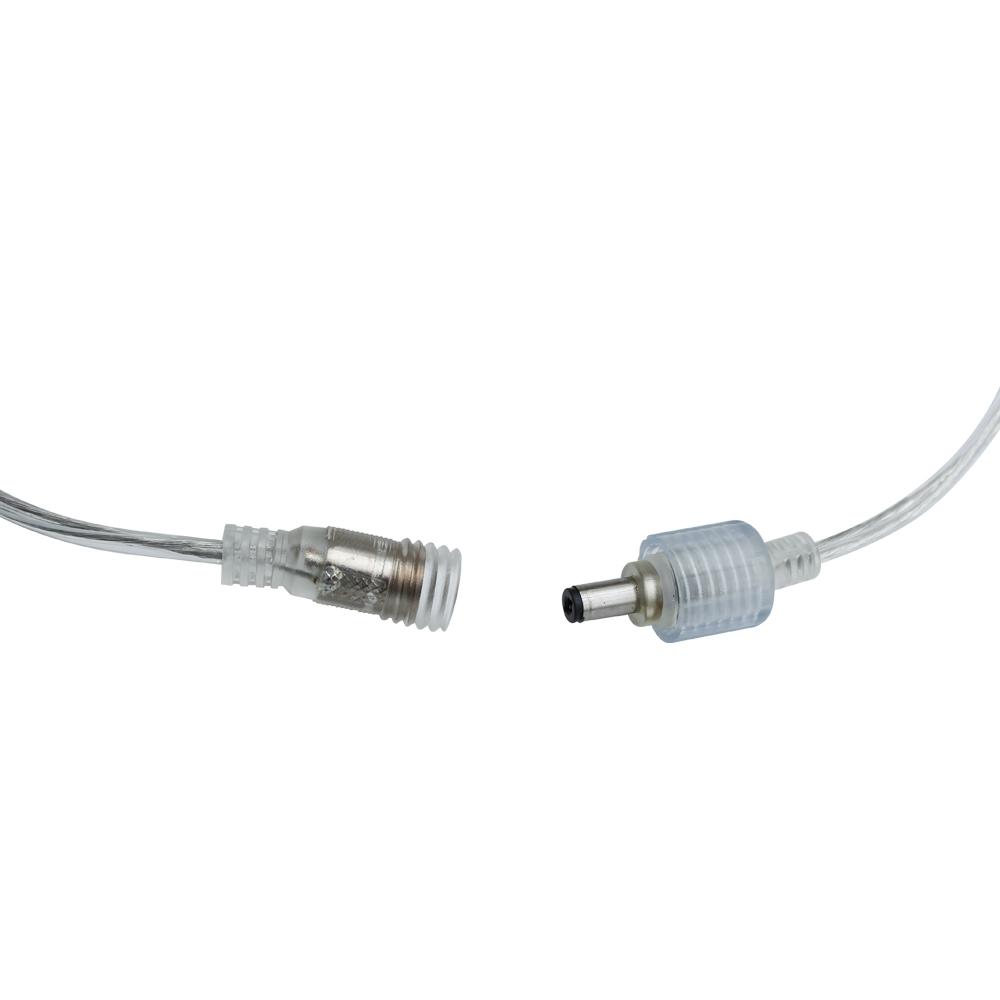

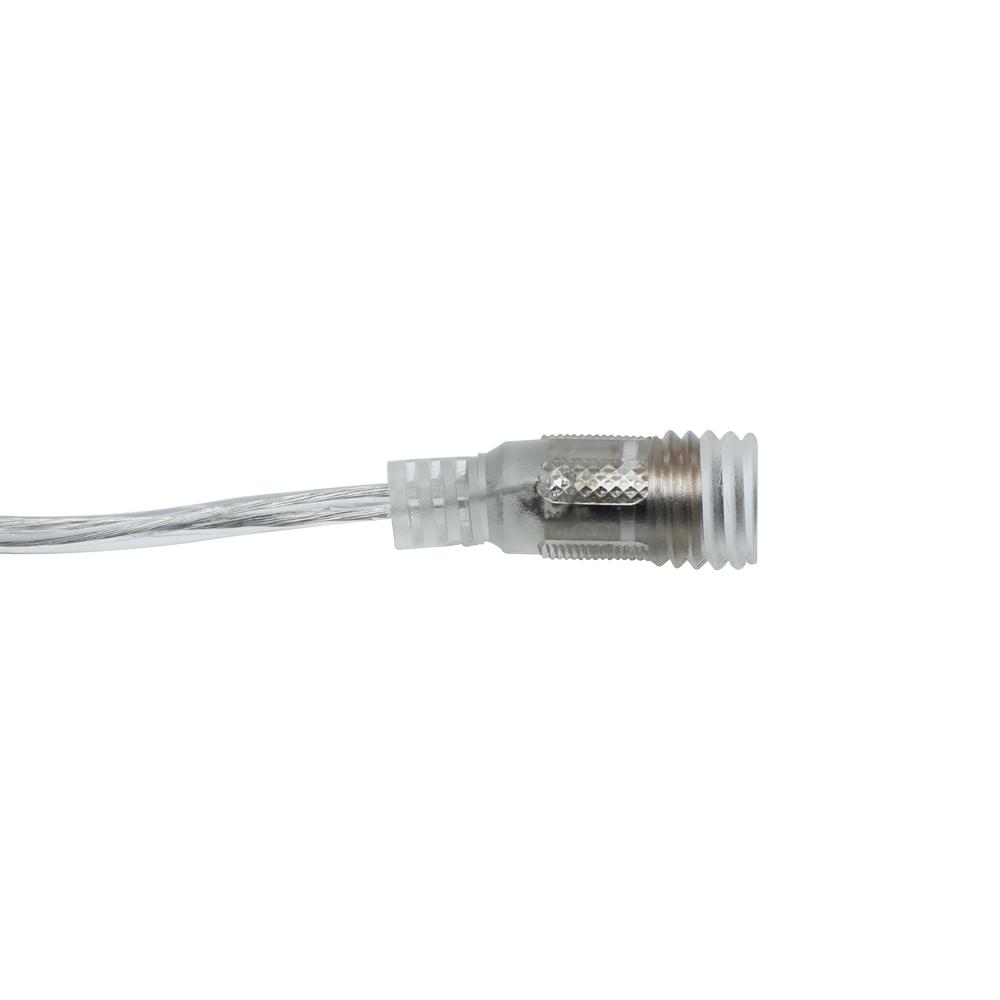

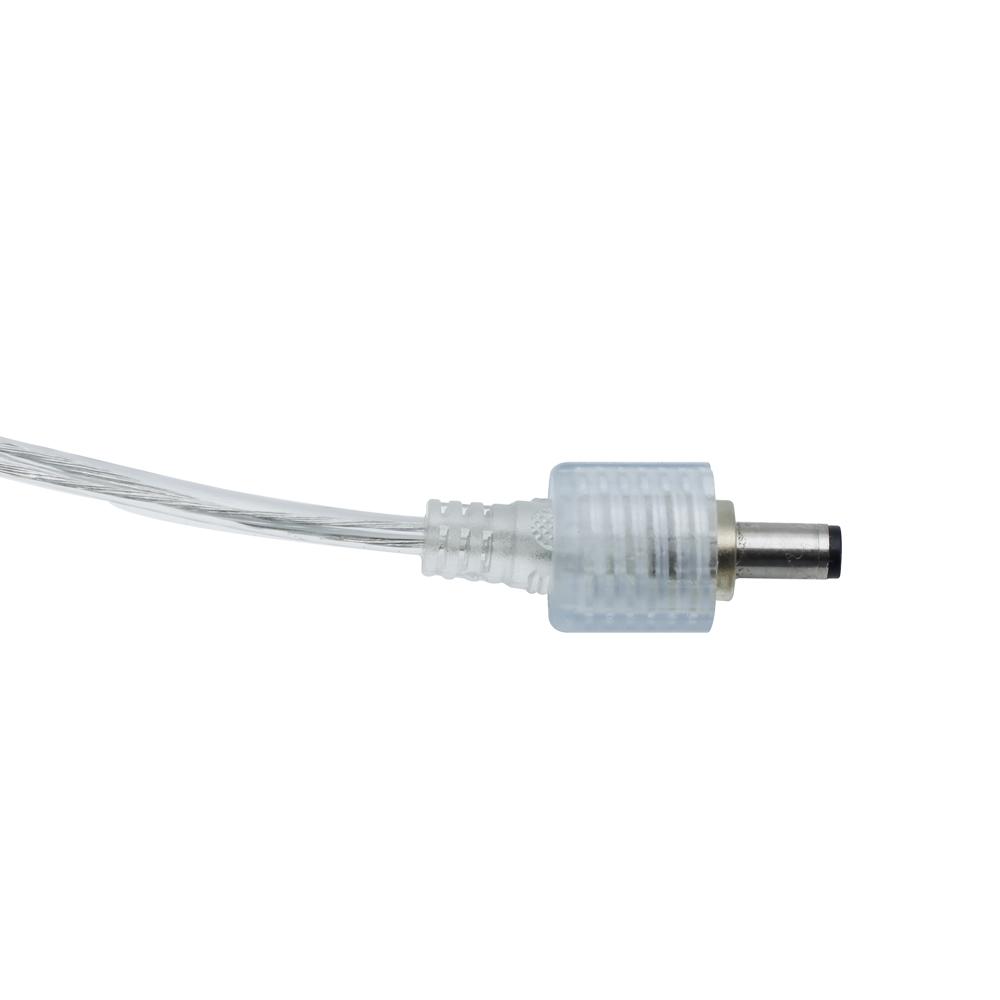

| Accesssories | Solder with DC5.5x2.1*(mm) plug connector at both ends, one end with female, the other end with male. |
| Lead | V+ and V-, polarities sensetive |
Dimensional Drawing
Applications
*For surveillance or security
*For the multitouch display
*For Night Version Light
Features
*Can be cut into 3-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safty Tips
*Always disconnect power supply before cutting/connecting LED Light Rigid Strips.
*Do not crimp or bend the Rigid Strips.
*Do not connect LED Rigid Strips. directly to 120V AC power.
*Apply power to test LED Rigid Strips before mounting.
Installation Planning
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
