40 Keys Wilress Infrared Remote Controller for RGBW/RGBWW LED Strip Lights

40 Keys Wilress Infrared Remote Controller for RGBW/RGBWW LED Strip Lights

This 44-keys infrared RGBW controller adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible chatoyancy, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile,you could adjust brightness, static color choices and various dynamic changes in lighting effects
through infrared remote control.

Techinical Parameters

Controller:
Working Temperature: -20℃~+60℃
Input Voltage:12V / 24V
Channel:4CH
Static Power Consumption: <1W
Size: L61xW35xH22 mm
N.W: 60g
Output Current: <2A per channel
Output Wattage: 12V<96W, 24V<192W

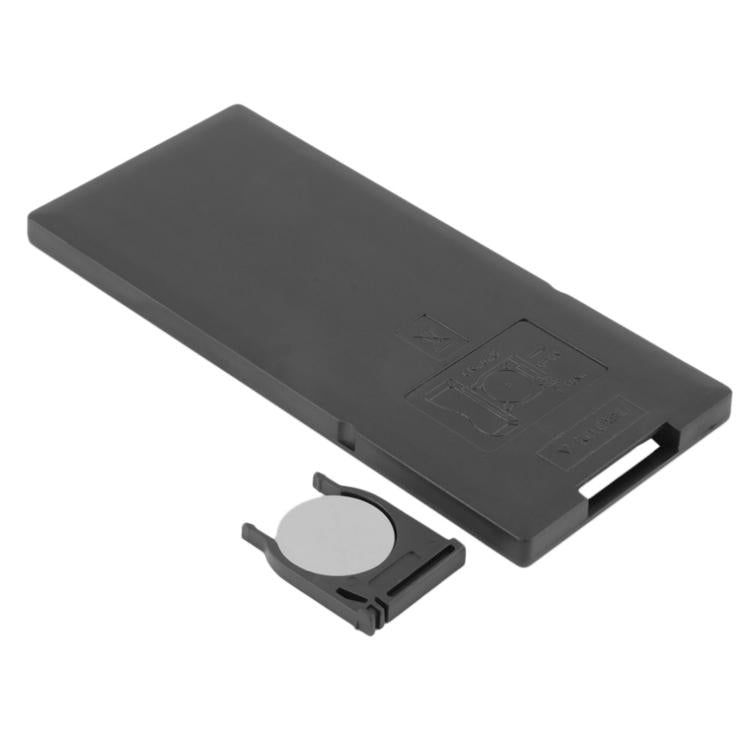

Remote:
Working Temperature: -20℃~+60℃
Power: Button Battery (included)
Working Voltage: 3V
Size: L125xW56xH6.5(mm)

Dimension (1inch=25mm)

Remote Keys' Function

Connection
