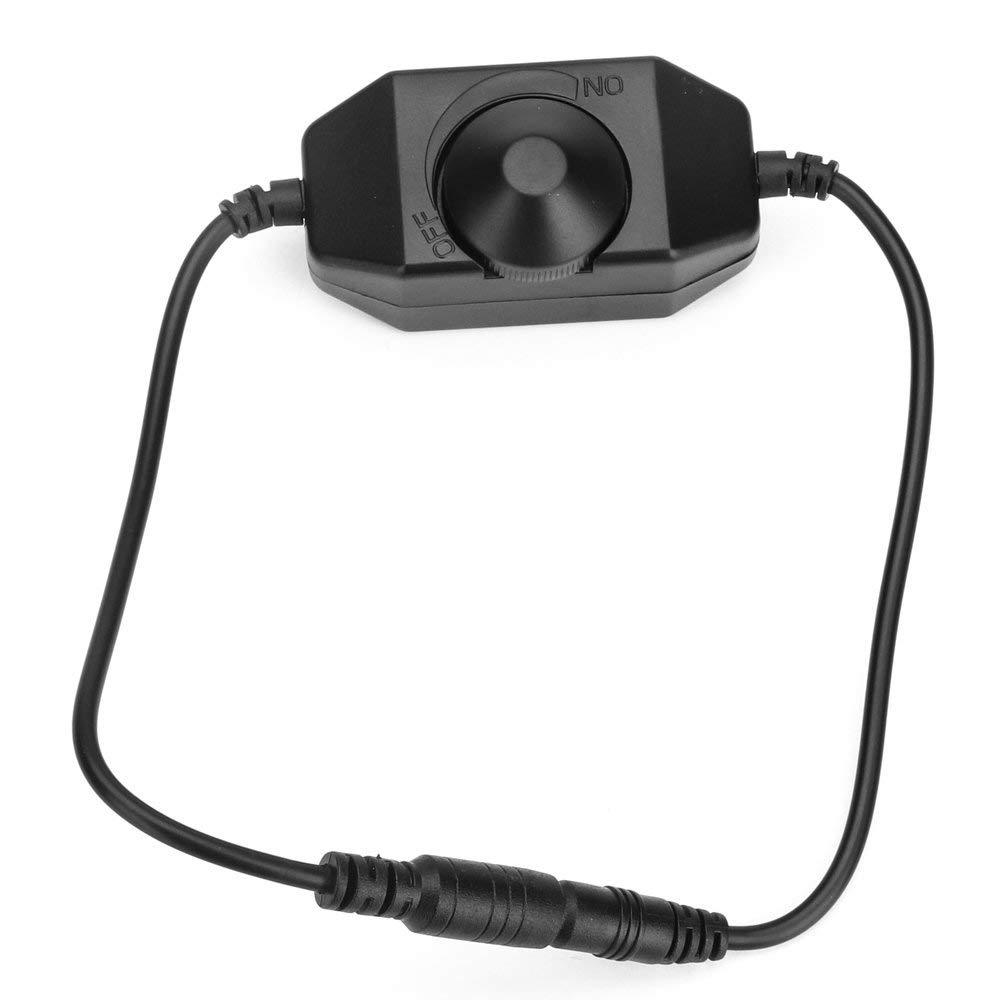

DC 12V-24V 6Amp Rotary Switch Inline Dimmer

Dimmer is a controller that it can adjust brightness, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.

Technical parameters

*Working temperature: -20-60℃
*Supply voltage: 12V-24V DC
*Output: 1 channel
*External dimension: L67xW33H33 (mm)
*Net weight: 30g
*Gross weight:55g
*Static power consumption: <1W
*Output current: <6A
*Power output: 72W @12V; 144W @24V
*Input interface: DC5.5x2.1mm Female
*Output interface: DC5.5x2.1 Male

Direction for use

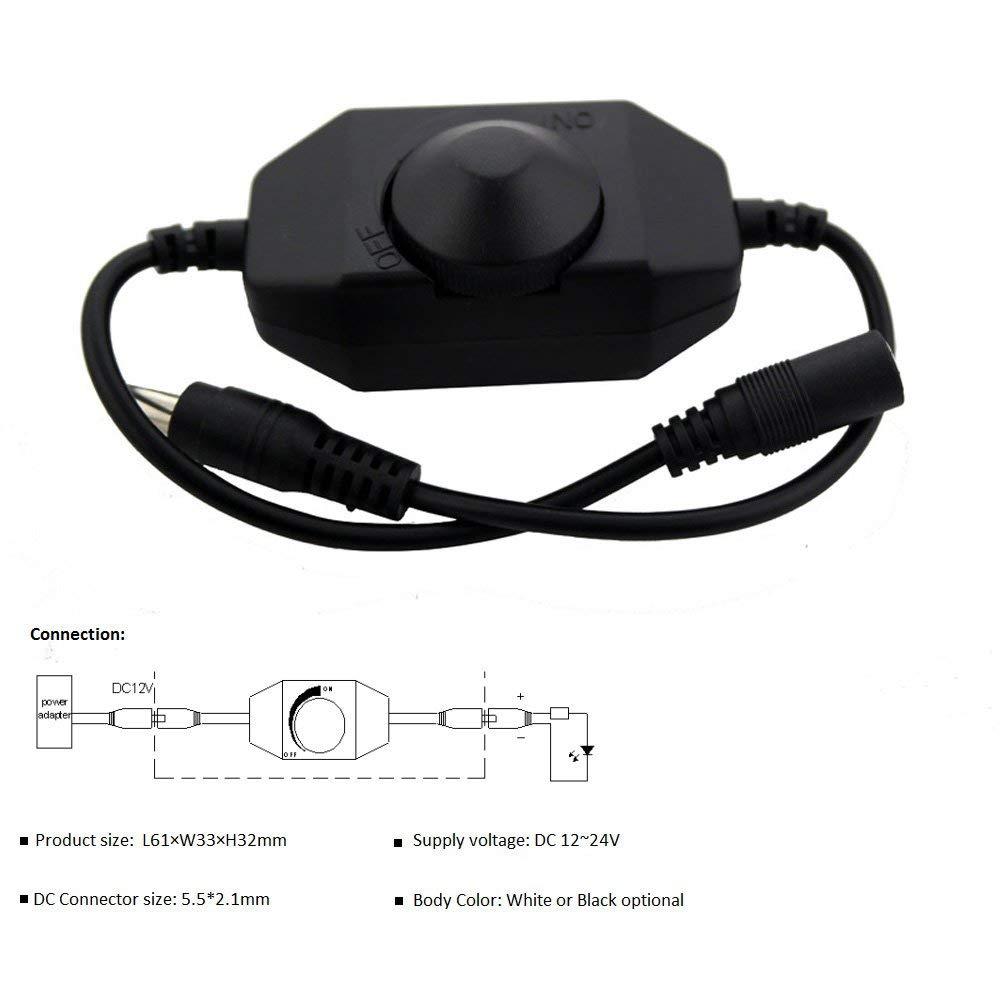

1. Connect the load wire at first, following by the power wire;
2. Adopt rotary button,its function as follows:
Rotate button to the right,brightness will be brighter,when you rotate it to the far right,the
brightness is greatest. Rotate button to the left,brightness will be darker,when you rotate it to the far left,the light will be turned off.

Typical Applications
