DC 5V SK6812 Individually Addressable LED Strip Light 5050 RGB Pixel LED Strip Kit 5 meters with 30LEDs
DC 5V SK6812 Individually Addressable LED Strip Light 5050 RGB Pixel LED Strip Kit 5 meters with 30LEDs

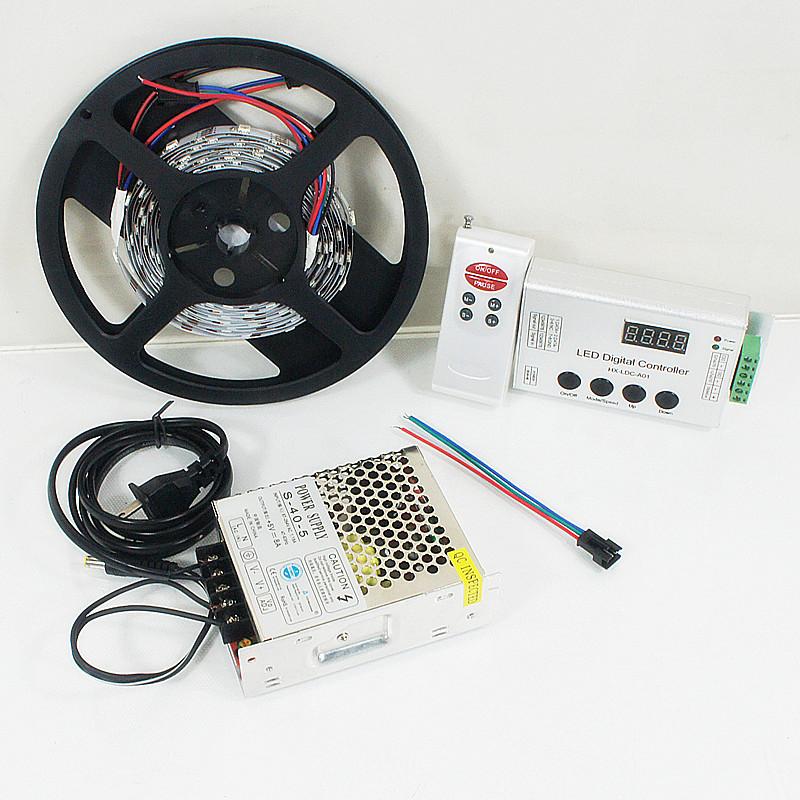

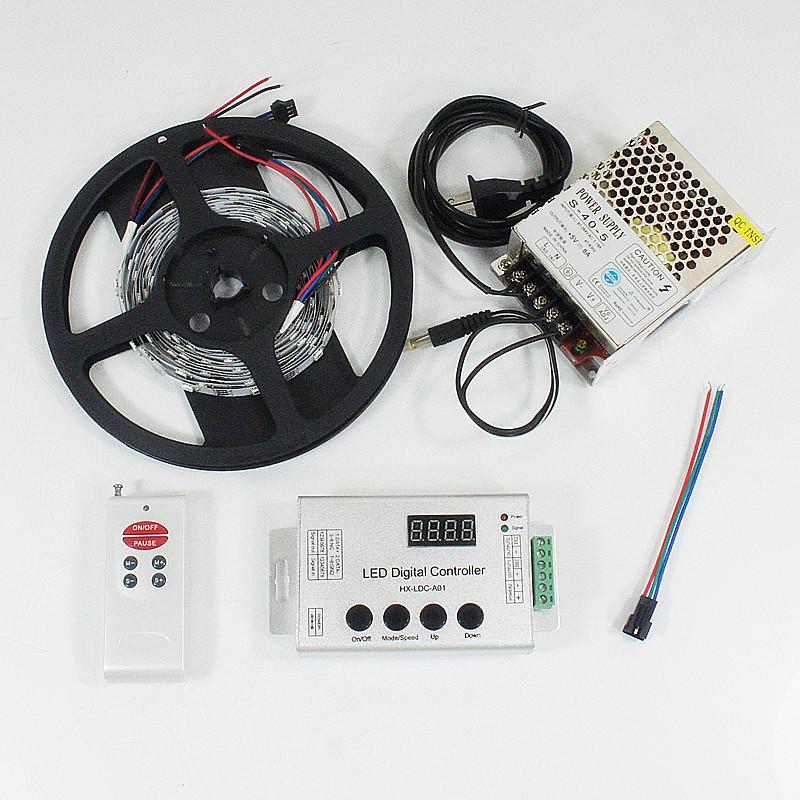

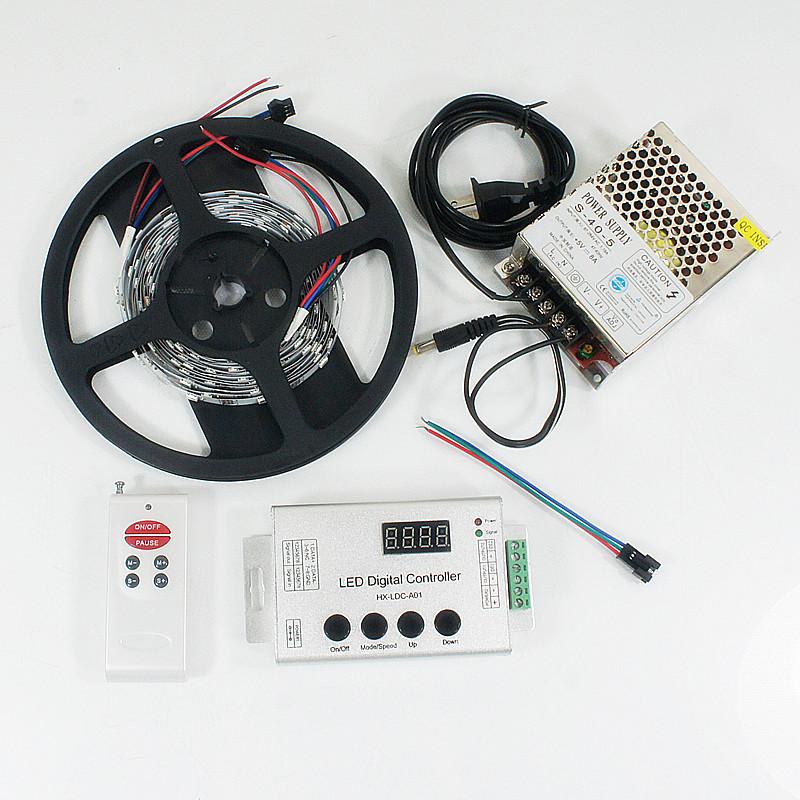

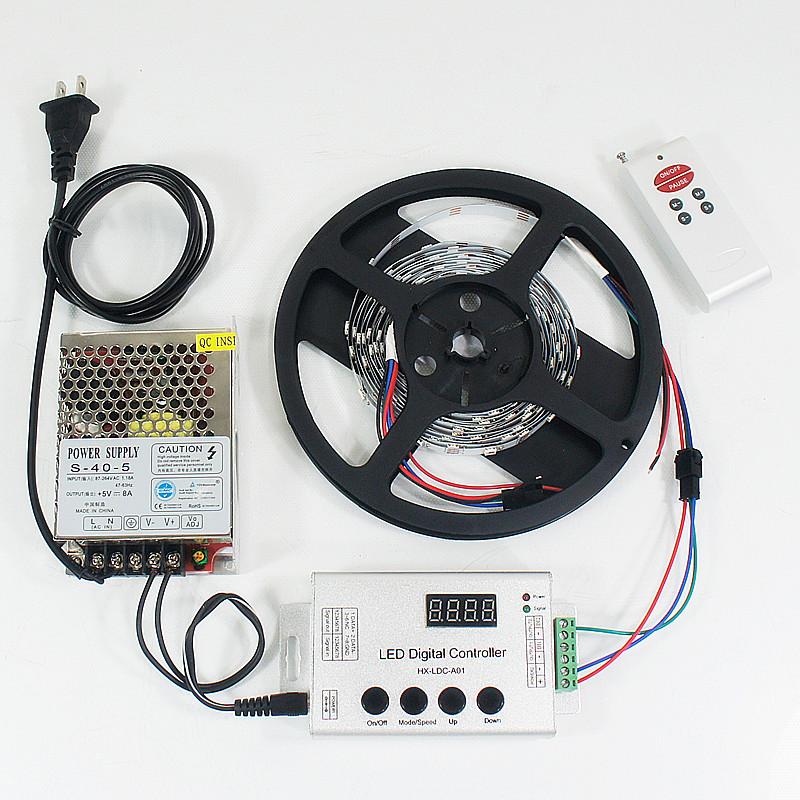

This 5050 60LED IC Controlled Dream Color RGB LED Strip Kit includes the following items:
1. 1 x SK6812 IC Controlled Dream Color 5050 RGB Pixel LED Strip Kit 5 meters with 30LEDs
2. 1 x DC5V RF Dream Color RGB LED Strip Controller
3. 1 x DC5V 12Amp Power supply
4. 1 x 3pin SM Connector (10cm long)
5. 1 x DC male plug cable, 5.5x2.1mm (20cm long)
6. 1 x AC Power Plug Cord (100cm long)
The strip in this kit is the DC 12V TM1914 Breakpoint Continuingly RGB Color Changing Addressable LED Strip Light 5050 RGB 16.4 Feet (500cm) 60LED/Meter
Power: 5VDC
Wattage: 9W/Mtr
LED QTY.: 30LED/Mtr
IC QTY.: 10pcs/Mtr
Beam Angle: 120°
PCB finish color : White
Protection grade option: Non-waterproof, IP65 Waterproof ,IP67 Waterproof
Packing:5Mtr/roll
Connector: 3-pin SM connector for strip extention and 2color wire for power supply connection
Specification of the 60Watt Transformer in the Kit:
The Input Voltage: 100-240VAC
Output voltage: 5V
Output current: 12A
Dimension(mm): 111*78*36 (mm)
Accessory: it comes with power plug suit to different country (Europe plug, US plug Italy Plug and so on).
AC Power Plug in the Kit
DC male plug cable, 5.5x2.1mm in the Kit
3pin RGB Connector in the Kit

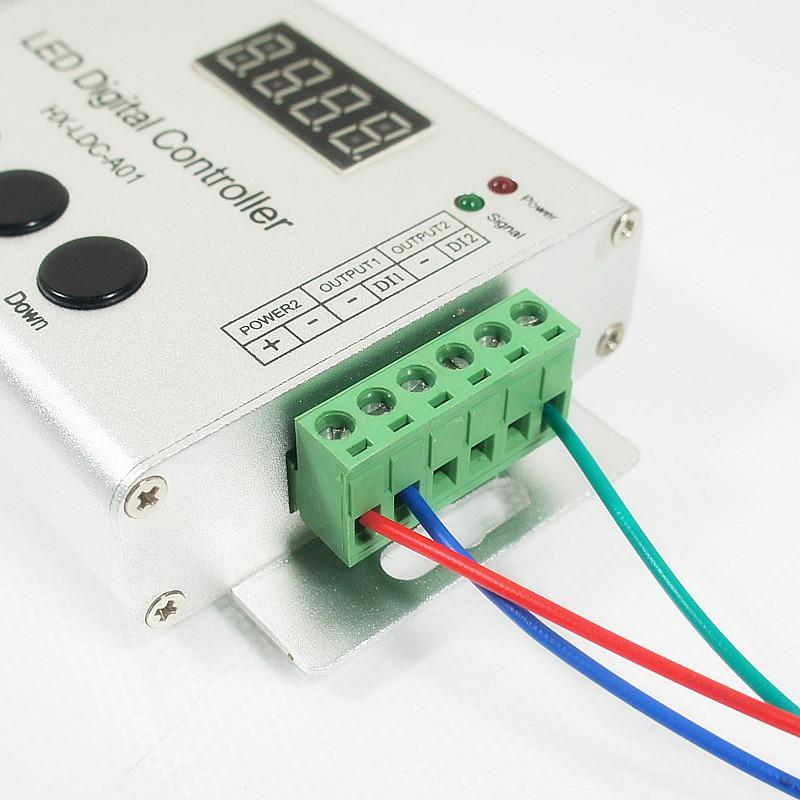

The RF Dream Color RGB Controller is the Dream Color Digital/SPI RF LED Controller - 5-24VDC / 2048 Pixels.
On/off：It can open or close output.
Mode/Speed ：Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP：Mode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
DOWN：Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
Standard color changes as follows:
