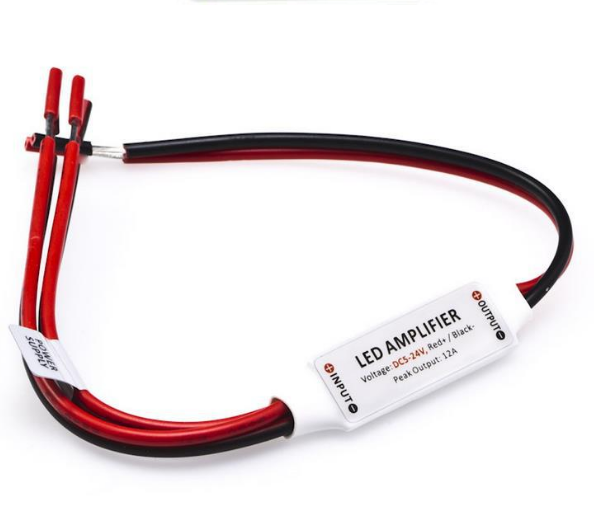

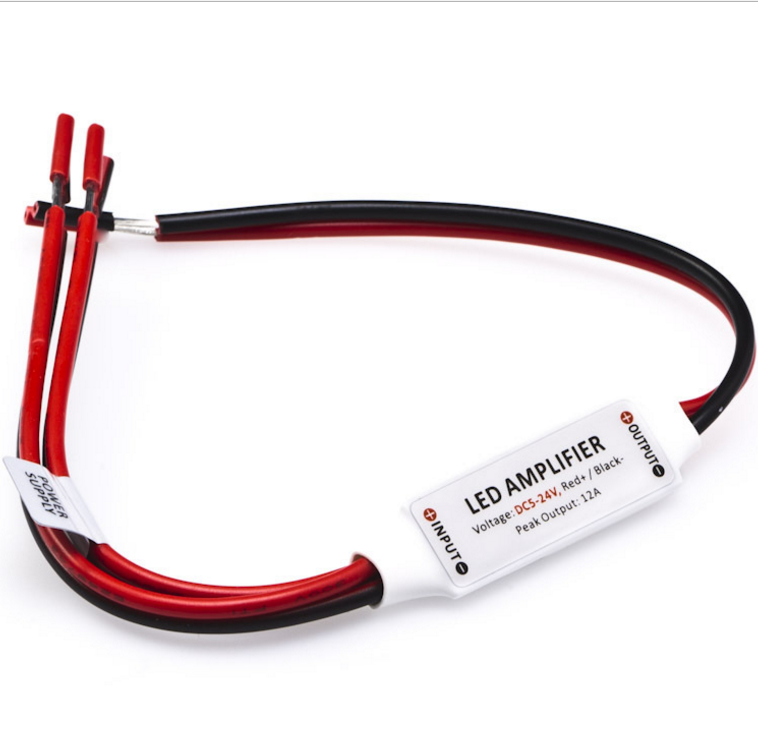

Mini Amplifier 2 Channel for 5V 12V or 24V for Single Color LED Flexible Strip Lights

This 1channel Amplifier is able to use for single color 5V/12V/24VDC LED lights. Its max load is 12Amp. It's usually used with controller together,  to enlarge the signal, to make one controller can control more LED Lights that over its rated load.

Specification

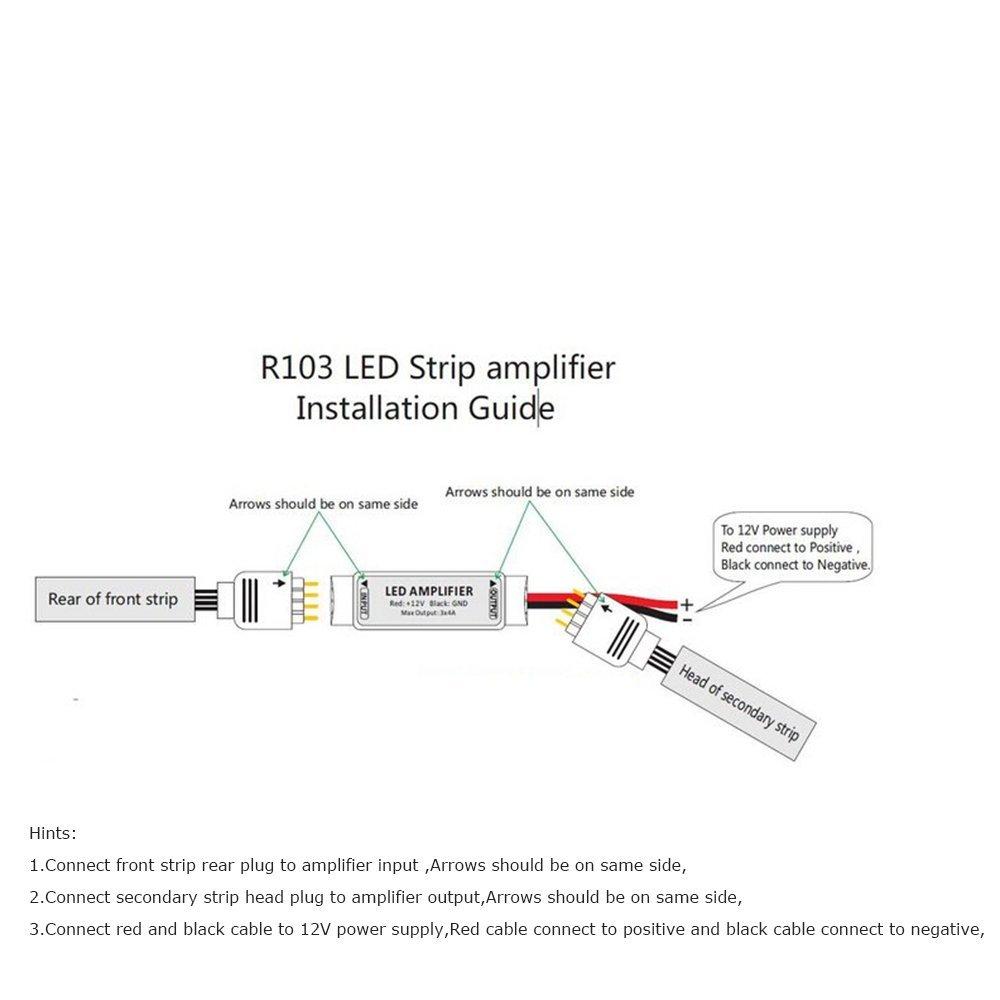

Wiring

INPUT (with label Power Supply): The Red/Black Wire for connect to Power Supply Postive(Red) and Negative(Black) Poles.

INPUT: Red wire for postive of strip, White/Black wire for negative of strip.

OUTPUT: Red wire for postive of strip, White/Black wire for negative of strip.
